Upgrading Perodua Kancil K4 660 Lamps
Bulbs
| Function | Location | Total Quantity (for the row) | Bulb | LED Color |
|---|---|---|---|---|
| Headlamp | Front Headlamp | 2 | H4 | White |
| Sidelamp | Front Headlamp | 2 | T10/W5W | White or Yellow (to your preference) |
| Front Turn Signal | Front Turn Signal | 2 | ? | Amber |
| Meter Backlight | Combination Meter | 3 | T5 bulb in holder1) | Any |
| LCD Backlight | Combination Meter | 1 | T5 bulb in holder or B8.5D | Any |
| Turn Signal Indicator | Combination Meter | 2 | B8.5D or T5 bulb in holder | Green or White |
| High Beam Indicator | Combination Meter | 1 | B8.5D or T5 bulb in holder | Blue or White |
| Side Turn Signal | Side Turn Signal | 2 | T10/W5W | Amber or White |
| Map Light | Map Light | 1 | 31mm Festoon | Any |
| Brake | Rear Combination Lamp | 2 | 1157/BAY15D/P21W | Red |
| Reverse | Rear Combination Lamp | 2 | T15/W16W | White |
| Rear Turn Signal | Rear Combination Lamp | 2 | 1141/BAU15S/PY21W | Amber |
| License Plate | Rear License Plate | 2 | 36mm Festoon | White |

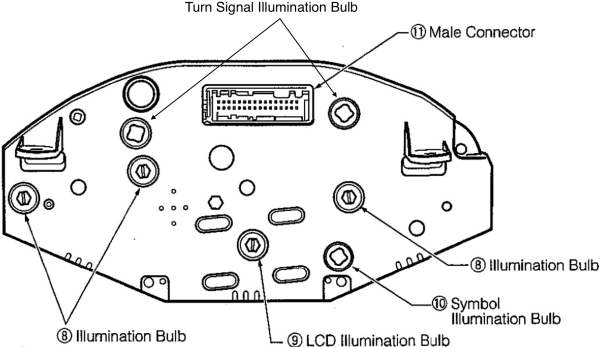

Meter Bulb Locations
1)
You can use a B8.5D but I found them too dark. T5 LEDs protrude more and more light enters the light pipes and diffusers.
