1. Custom USB Mini-B Cable
2. STM32CubeProgrammer

1. Prepare the custom cable (refer to section below)
2. Connect the custom cable to a USB-TTL serial UART adapter (do not power the adapter up yet)

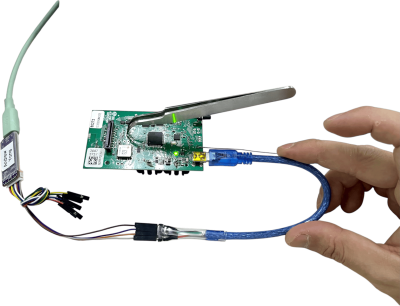

3. Short these 2 pins (I used a pair of tweezers), this sets BOOT0 pin high

4. Connect the USB-TTL serial UART adapter to your computer
5. Launch STM32CubeProgrammer

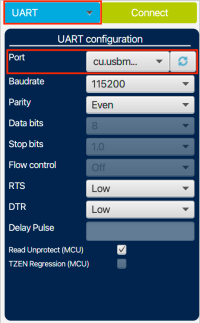

6. Select UART connection and the correct serial port for your USB-TTL adapter

   1. If this is your first time programming the DFM-17, Read Unprotect (MCU) must also be checked ( factory firmware will be erased )

7. Click Connect
8. If connection succeeds, you can disconnect the shorted BOOT0 pins
9. You can now program the DFM-17 as you like (Read Unprotect (MCU) does not need to be checked for future re-connection attempts)

Requires soldering to PCB

Refer to DFM-17 Radiosonde - SWD Header

• Initial unlock (disable Readout Protection)
  • STM32CubeProg: STM32_Programmer_CLI -c port=YOUR_COM_PORT_OR_TTY br=115200 -rdu
  • stm32flash: stm32flash -k YOUR_COM_PORT_OR_TTY
  • OpenOCD: openocd -f interface/stlink.cfg -f target/stm32f1x.cfg -c "init" -c "reset init" -c "stm32f1x unlock 0" -c "reset halt" -c "exit"
